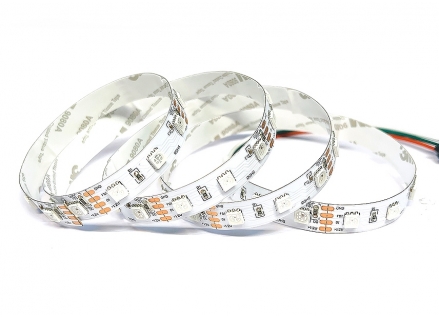

KL592  Breakthrough Dream Flexible Strip Function Feature

• KL592  IC driver chip with RGB chip integration in a 8 foot 5050 encapsulation, constitute a complete pixels.
• Driver IC chip using one serial communication way.
• Driver IC built-in 5 v voltage regulator tube，concatenated resistance voltage support DC6 ~ 24 V, under the working voltage can take common RGB.
• Fixed driver IC constant-current output 18 mA, PWM adjustable grayscale level 256.

•  Built-in electric reset circuit, after reset circuit all registers initialized to zero.

• Data transfer rate of 800 KBPS, when the refresh speed of 30 frames per second, cascading can not less than 1024 pixels, when the refresh speed of 15 frames per second, cascading can not less than 2048 pixels.

•

  KL592  for serial single wire dual channel transmission support breakthrough  functions, dual channel digital interface chip (DIN, FDIN) can switch input to each other, “DO” foot forward cascade data, make sure one driver abnormal will not influence other normal work, improve product stability.
• Driver IC built-in automatic shaping circuit, error signal and data which comes from controller and upper chips can be corrected and adjusted to standard data waveform and then forwarded to the lower level, the signal will not attenuated and distorted despite cascade remote.
